DURMA HD-FO FIBER LASER
DURMA HD-FO FIBER LASER specifically designed that care about floor space. HD-FO Fiber Lasers make differences with speed, high quality components, efficiency and industrial design. Loading and Unloading requires less effort in situations where shuttle table is not necessary.
- Specifically designed that care about floor space
- User Friendly
- Low Operating Costs
- Fast Movable Upper Cover
- Easy Access To Cutting Area
- Compact Bridge Design
- Easy Transport
Fiber lasers outshine with its fast cutting and energy efficiency abilities when especially its compared to CO lasers. Easy use, maintenance and service has been achieved by the high technology of Fiber Lasers. Globally recognized efficient components used in DURMA Fiber Lasers add value to your company. Rack & Pinion and Linear Motor Motion tecnologies allows us achieve 3G accelaration. We always strive to serve quality, performance and efficiency to our clients. DURMA Fiber Laser is unrivaled with its rigid body structure, perfect filtration system, compact design, efficiency and user friendliness.
| HD-FO TECHNICAL SPECIFICATIONS | ||
| Max sheet size | 3.048 x 1.524 mm | |
| Max. sheet weight | 200 kg/m² | |
| Z axis stroke | 125 mm | |
| Max. Synchronous speed (X-Y) | 141 m/dk. | |
| Max. Acceleration (X-Y) | 14 m/s² | |
| Positional Accuracy | ±0.05 mm | |
| Repeatability | ±0.05 mm | |
| MACHINE SIZES | ||
| Machine size | 5308mm x 2810mm h= 1860mm 6582mm (with filter unit) | |
| CUTTING THICKNESS | ||
| Power | 1kW | 2kW |
| Mild Steel (mm) | 8 | 12 |
| Stainless Steel (mm) | 4 | 6 |
| Aluminum (AIMg3) (mm) | 4 | 6 |
| Brass (mm) | 4 | 6 |
| Copper (mm) | 2 | 3 |

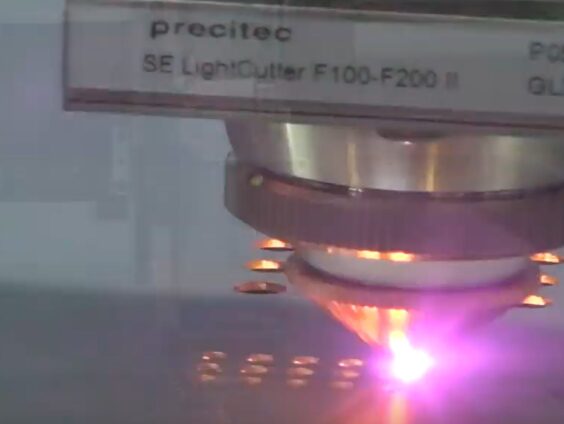

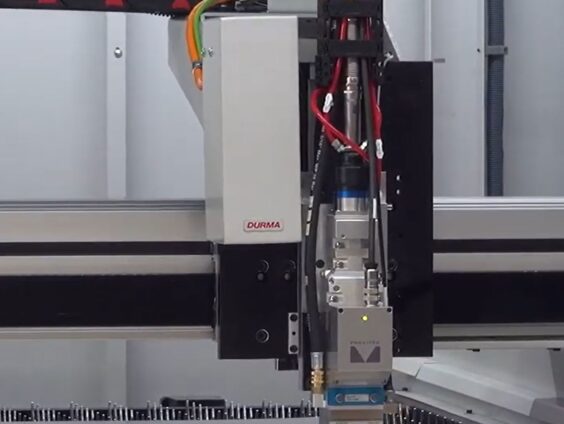

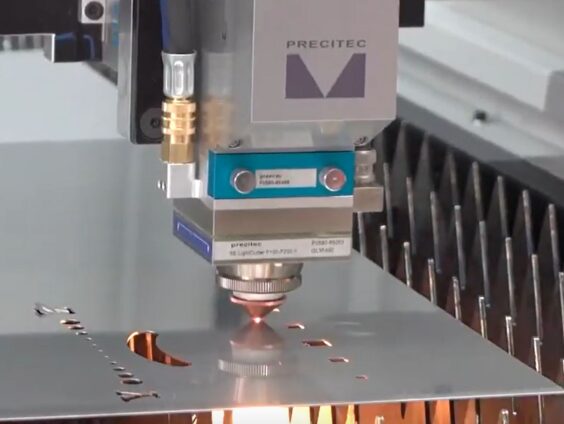

| CUTTING HEAD | ||
| Focus Distance | 125 mm | |
| Focus | Automatic /Manual | |
| CONTROL UNIT | ||
| CNC | SIEMENS SINUMERIK 840D SL | |
| Screen | 19″ Touch panel | |
