Milestone s

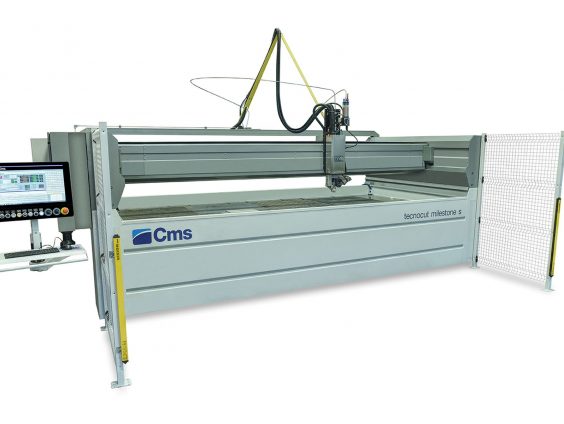

CMS tecnocut milestone s Waterjet Cutting Systems

The tecnocut milestone s waterjet cutting system is the answer to the requirements of CMS Tecnocut’s customers. Simple to use and powerful, it has been specifically designed to provide high levels of productivity and the maximum safety of operation. tecnocut milestone s is particularly suited to the stoneworking industry.

Max capacity of support surface: 1000 kg/m2 – Speed: 0->40000 mm/min – 15” TFT colour screen, membrane keyboard with built-in mouse.

External port for USB key interface – Connection to the computer network: RJ45 10/100 Mb connector.

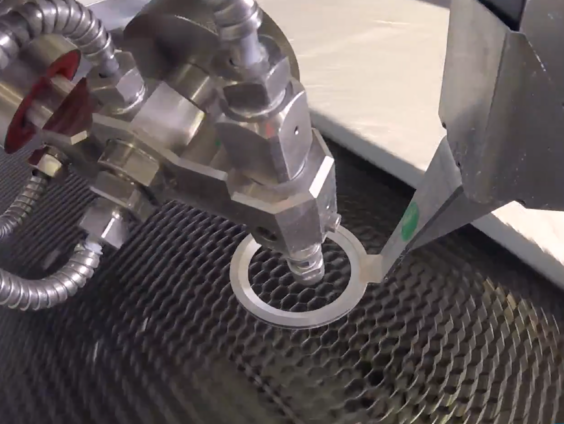

    Tecnocut Milestone S is an advanced, versatile, high-performance

    waterjet cutting system – either pure water or hydro-abrasive – able

    to accomodate the most diverse production demands in different

    application fields, delivering highly accurate cuts even in 3D.

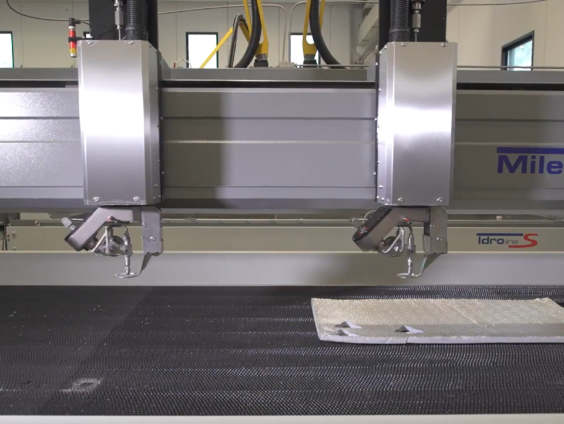

    • The bridge structure with fixed table, mobile crossbeam and high

    guides make it compact and able to move quickly.

    • All motions are carried out by tempered ground rack, driven by

    brushless motors.

    • The axes’ guideways are housed within the structure and protected

    by an innovative system called “Powder-Free”, which provides full

    protection against water and powders.

    TECNOCUT MILESTONE: TECHNICAL DATA
    MODEL17302040
    X AXIS3000 mm (2heads) 3300 mm (1head)4000 mm (2heads) 4250 mm (1head)
    Y AXIS1700 mm2000 mm
    Z AXIS350 mm (200 mm with 5-axis head)350 mm (200 mm with 5-axis head)
    B AXIS+/- 60°+/- 60°
    SUPPORT PLANE3700×2050 mm4650×2050 mm
    OVERALL DIMENSIONS WITH LIGHT BARRIERS5010 x 3600 mm5960 x 3900 mm
     WEIGHT (EMPTY)3600 Kg4000 Kg
    Max capacity of support surface: 1000 kg/m2 – Speed: 0->40000 mm/min – 15” TFT colour screen, membrane keyboard with built-in mouse. External port for USB key interface – Connection to the computer network: RJ45 10/100 Mb connector.
