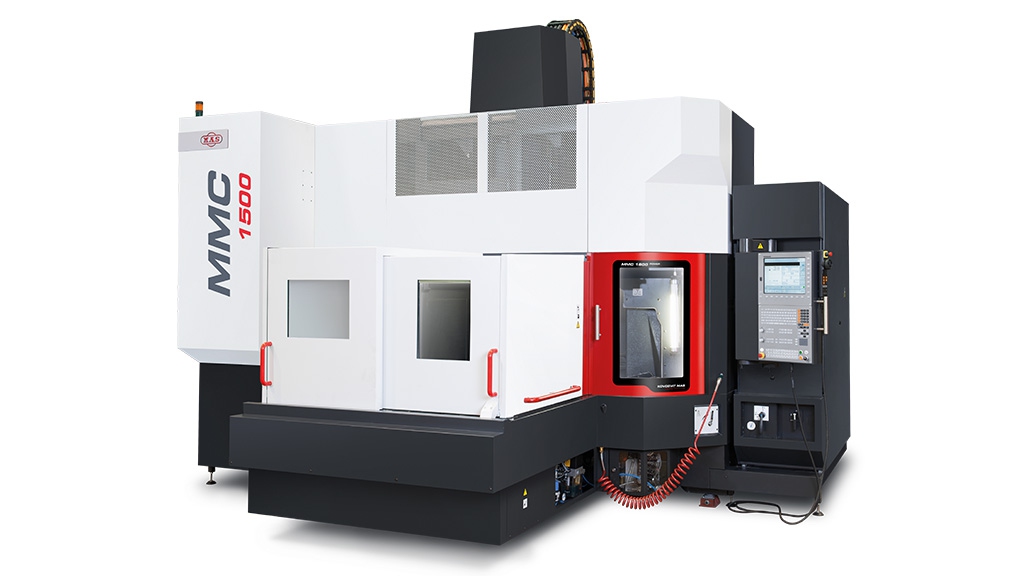

Gantry machining centers KOVOSVIT MMC 1500
X / Y / Z – 1 500/1 300/600 mm
Table clamping surface: 1 500 x 1 300 mm
Max. weight on table: 2 500 Kg
Max. speed: 8 000/10 000/12 000/18 000 min-1
- Machine MC1500 is designed for precise and fast machining of general shaped areas, drilling, boring, reaming, cutting threads and milling large and complicated shaped workpieces.
- Machine variants: Single table and dual table „DT”
- Spindle variants: POWER PLUS, POWER, SPRINT, SPEED
- High machine accuracy and dynamics in axes X, Y, Z (rapid traverse up to 45,000 mm/min and acceleration 5 m/s-2).
- The working space of the machine is 1 500 × 1 000, or in the case of the “DT“ (Dual Table) variant the work table is divided into two separate tables 720 × 1 000. Both working spaces are fully covered and separated.
- The movable parts of the machine (table, cross beam, ram) are placed on linear guideways
- Measurement of the position by the linear optical sensors (scales)
- Control system HEIDENHAIN / SIEMENS
The X-, Y-, Z-axis linear and roller guides ensure consistently high machining accuracy
— Direct measurement – quick and precise positioning
— Application of high-performance tools with high-pressure internal coolant supply
— Quick tool change – automatic tool changer with mechanical arm up to 30 [24] tools in standard
— Wide machining range with minimum build-up area of the machine
— Efficient chip removal
— Water-tight cabin covers of the work area with left-hand side glass door
— Wide choice of special accessories
— Spindle output S1 up to 39 kW
— Spindle speed S1 up to 18 000 min-1
— Digital AC drives of the spindle and axes
— HEIDENHAIN iTNC 530 HSCI (SINUMERIK 840D sl) control system
| Internal coolant supply 2 MPa – Type AD |
| Internal coolant supply 6 MPa – Type AD |
| Adapter for centric clamping of tools DIN 69872-A ISO 40 type A |
| Adapter for centric clamping of tools DIN 69872-A ISO 50 type A |
| 3D probe OMP 60 RENISHAW |
| Tool probe TS27R RENISHAW |
| Coolant belt filter FS 100 |
| Filtermist FX aerosol exhauster |
| Manual working space rinsing |
| Light signalization of machine status (beacon) |
| Remote Diagnostic |
| MAS Machine Monitor |
| MAS GSM Monitor |
| HEIDENHAIN control system options |
| Electric equipment 3×400V/50Hz |
| Control system HEIDENHAIN / SIEMENS |
| Digital AC control drives for the spindle and axes X,Y,Z |
| Direct measurement of the position of axes X, Y, Z by linear scales |
| Cooling aggregate for external cooling |
| Centric tool clamping |
| Automatic lubrication of movable parts |
| Hand wheel |
| ETHERNET |
| Thermal compensation |
| Operator tool kit |
| Operating manual |
| Spindel circulation cooling |
| Rake chip conveyor |
| ATC with mechanical arm |
| Working space lighting |
| Switchboard air condition |
| TECHNICAL DATA | MMC 1500 POWER PLUS | MMC 1500 POWER | MMC 1500 SPEED | MMC 1500 SPRINT | |
| Joint working space – joint movement of the table + without the curtain | |||||
| Maximum dimension of the workpiece | mm | 1500 x 1000 x 600 | 1500 x 1000 x 600 | 1500 x 1000 x 600 | 1500 x 1000 x 600 |
| Table clamping surface | mm | 1500 x 1300 | 1500 x 1300 | 1500 x 1300 | 1500 x 1300 |
| Travel of the slide in X axis | mm | 1500 | 1500 | 1500 | 1500 |
| Travel of the table in Y axis | mm | 1300 | 1300 | 1300 | 1300 |
| Travel of the ram in axis Z | mm | 600 | 600 | 600 | 600 |
| Distance of the spindle nose from the table clamping surface | mm | 110 – 750 | 110 – 750 | 110 – 750 | 110 – 750 |
| Maximum weight on the table | kg | 2500 | 2500 | 2500 | 2500 |
| T-slots (number × width × pitch) | 5 × 18 × 125 | 5 × 18 × 125 | 5 × 18 × 125 | 5 × 18 × 125 | |
| FEED RATES | |||||
| Working feed rates in axes X,Y,Z | mm/min | 1 – 45 000 | 1 – 45 000 | 1 – 45 000 | 1 – 45 000 |
| Rapid traverse in axes X,Y,Z | mm/min | 45 000 | 45 000 | 45 000 | 45 000 |
| SPINDLE | |||||
| Speed | min-1 | 8 000 | 10 000 | 12 000 | 18 000 |
| Output of spindle S1/S6 40% | kW | 39 / 50 | 20 / 26 | 32 / 48 | 25 / 35 |
| Max. torque S1 / S6 | Nm | 451 / 579 | 260 / 340 | 130 / 200 | 86 / 120 |
| Spindle taper | HSK-A100 | ISO 50 | ISO 40 | HSK-A63 | |
