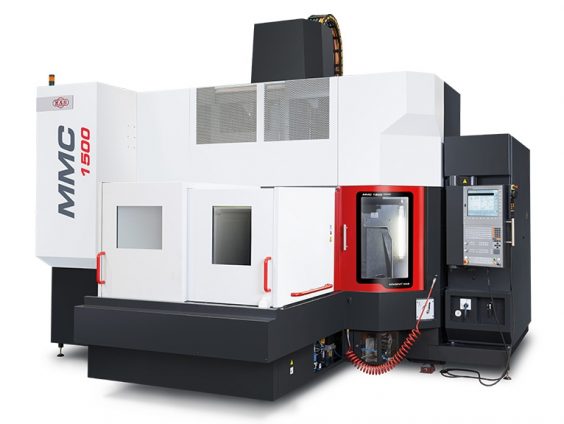

MMC 1500 – Gantry machining centers
Machine MC1500 is designed for precise and fast machining of general shaped areas, drilling, boring, reaming, cutting threads and milling large and complicated shaped workpieces.
Spindle variants: POWER PLUS, POWER, SPRINT, SPEED
High machine accuracy and dynamics in axes X, Y, Z (rapid traverse up to 45,000 mm/min and acceleration 5 m/s-2).
The working space of the machine is 1 500 × 1 000 mm

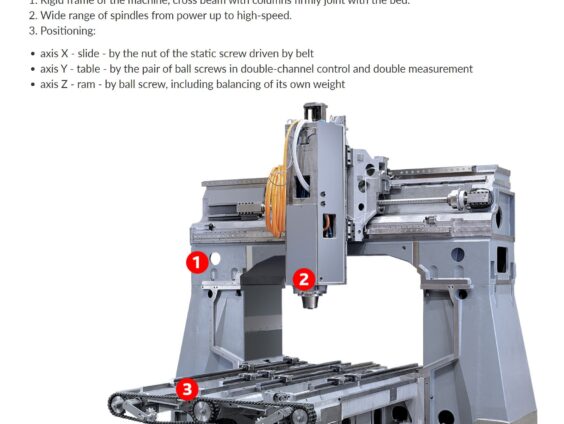

The movable parts of the machine (table, cross beam, ram) are placed on linear guideways
Measurement of the position by the linear optical sensors (scales)
Control system HEIDENHAIN / SIEMENS
Electric equipment 3×400V/50Hz.
Control system HEIDENHAIN / SIEMENS.
Digital AC control drives for the spindle and axes X,Y,Z.
Direct measurement of the position of axes X, Y, Z by linear scales.
Cooling aggregate for external cooling.
Centric tool clamping.
Automatic lubrication of movable parts.
Hand wheel.
ETHERNET.
Thermal compensation.
Operator tool kit.
Operating manual.
Spindel circulation cooling.
Rake chip conveyor.
ATC with mechanical arm.
Working space lighting.
Switchboard air condition.
Internal coolant supply 2 MPa – Type AD.
Internal coolant supply 6 MPa – Type AD.
Adapter for centric clamping of tools DIN 69872-A ISO 40 type A.
Adapter for centric clamping of tools DIN 69872-A ISO 50 type A.
3D probe OMP 60 RENISHAW.
Tool probe TS27R RENISHAW.
Coolant belt filter FS 100.
Filtermist FX aerosol exhauster.
Manual working space rinsing.
Light signalization of machine status (beacon).
Remote Diagnostic.
MAS Machine Monitor.
MAS GSM Monitor.
HEIDENHAIN control system options.
| TECHNICAL DATA | MMC 1500 POWER PLUS | MMC 1500 POWER | MMC 1500 SPEED | MMC 1500 SPRINT | |
| Joint working space – joint movement of the table + without the curtain | |||||
| Maximum dimension of the workpiece | mm | 1500 x 1000 x 600 | 1500 x 1000 x 600 | 1500 x 1000 x 600 | 1500 x 1000 x 600 |

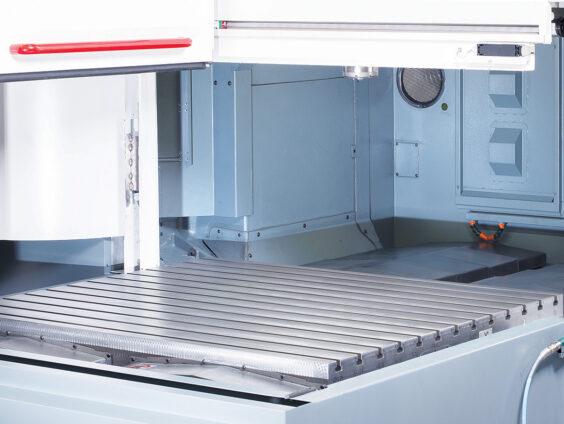

| Table clamping surface | mm | 1500 x 1300 | 1500 x 1300 | 1500 x 1300 | 1500 x 1300 |
| Travel of the slide in X axis | mm | 1500 | 1500 | 1500 | 1500 |
| Travel of the table in Y axis | mm | 1300 | 1300 | 1300 | 1300 |
| Travel of the ram in axis Z | mm | 600 | 600 | 600 | 600 |
| Distance of the spindle nose from the table clamping surface | mm | 110 – 750 | 110 – 750 | 110 – 750 | 110 – 750 |
| Maximum weight on the table | kg | 2500 | 2500 | 2500 | 2500 |
| T-slots (number × width × pitch) | 5 × 18 × 125 | 5 × 18 × 125 | 5 × 18 × 125 | 5 × 18 × 125 | |
| FEED RATES | |||||
| Working feed rates in axes X,Y,Z | mm/min | 1 – 45 000 | 1 – 45 000 | 1 – 45 000 | 1 – 45 000 |
| Rapid traverse in axes X,Y,Z | mm/min | 45 000 | 45 000 | 45 000 | 45 000 |
| SPINDLE | |||||
| Speed | min-1 | 8 000 | 10 000 | 12 000 | 18 000 |
| Output of spindle S1/S6 40% | kW | 39 / 50 | 20 / 26 | 32 / 48 | 25 / 35 |
| Max. torque S1 / S6 | Nm | 451 / 579 | 260 / 340 | 130 / 200 | 86 / 120 |
| Spindle taper | HSK-A100 | ISO 50 | ISO 40 | HSK-A63 | |
