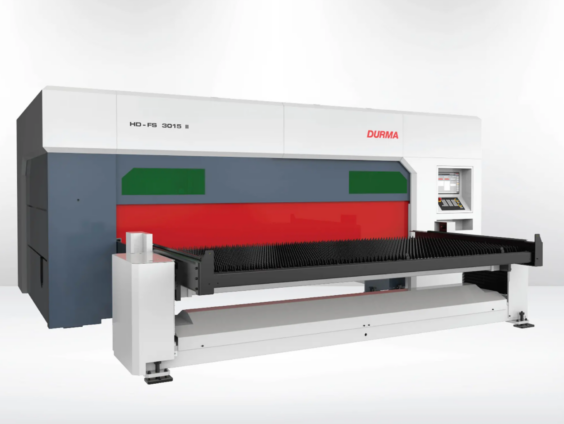

HD-FS SERIES FIBER LASER
HD-FS Smart lasers are designed like HD-F series using same components. It is specifically designed for businesses that care about floor space. Loading and Unloading requires less effort in situations where shuttle table is not necessary. HD-FS Smart Fiber Lasers make differences with speed, high quality components, efficiency and industrial design.
HD-FS Series Fiber Laser today, tomorrow and forever with you.
HD-FS Smart Lasers are designed like HD-F series using same components. Its is specifically designed for businesses that care about floor space.
Fiber Lasers provide innovative solutions
Perfect results on variety of material
Efficient and precise cuts on thick and thin material
Low investment and operating costs
Modern and compact desing
Fast service with remote control
Fiber lasers outshine with its fast cutting and energy efficiency abilities when especially its compared to CO lasers. Easy use, maintenance and service has been achieved by the high technology of Fiber Lasers. Globally recognized efficient components used in DURMA Fiber Lasers add value to your company. Rack & Pinion and Linear Motor Motion tecnologies allows us achieve 3G accelaration. We always strive to serve quality, performance and efficiency to our clients. DURMA Fiber Laser is unrivaled with its rigid body structure, perfect filtration system, compact design, efficiency and user friendliness.
| HD-FS Fiber Laser | ||
| HDFS 3015 | ||
| X Axis | 3100 | mm |
| Y Axis | 1550 | mm |
| Z Axis | 125 | mm |
| Max. Sheet Size | 3048×1524 | mm |
| ax. Sheet Weight | 200 | Kg/m² |
| Rack&Pinion | ||
| X Axis | 100 | m/min. |
| Y Axis | 120 | m/min. |
| Synchronous | 158 | m/min. |
| Acceleration | 16 | m/s² |
| Positional Accuracy | ±0,05 | mm |
| Repeatability | ±0,05 | mm |

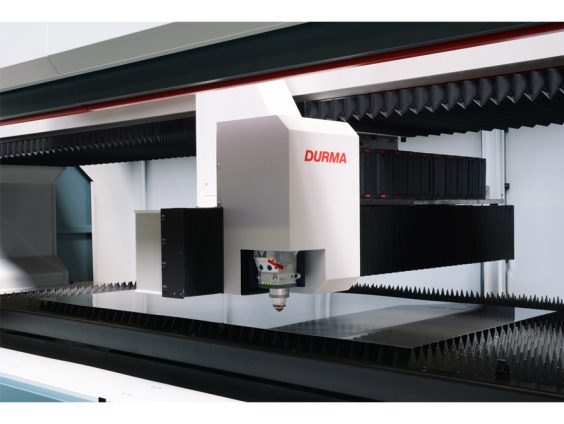

The ProCutter offers a complete solution for the laser-based fusion cutting of thin and medium material thickness in the wavelenght range around 1μm. In flame cutting, greater material thicknesses can also be processed while maintaining high standards of quality. The potential of the cutting head is optimally converted into productivity, especially in the case of flatbed and pipe cutting machines, where innovative technologies are combined with proven concepts, providing the best possible performance, range of flexibility and degree of reliability. The combination of proven technology and optimized design enables processing with up to 10 kW laser power in the nead-infraded range – and gives you reduced installation space and weight at the same time. A robust and dustproof housing ensures a long service life and allows external linear drive accelarations up to 4.5 genabling an efficient cutting operation. High-quality optics and the highest standards of quality in manufacturing and assembly ensure optimum laser beam guidance and shaping with high focal position stability, even at high laser power.
