XS 1250

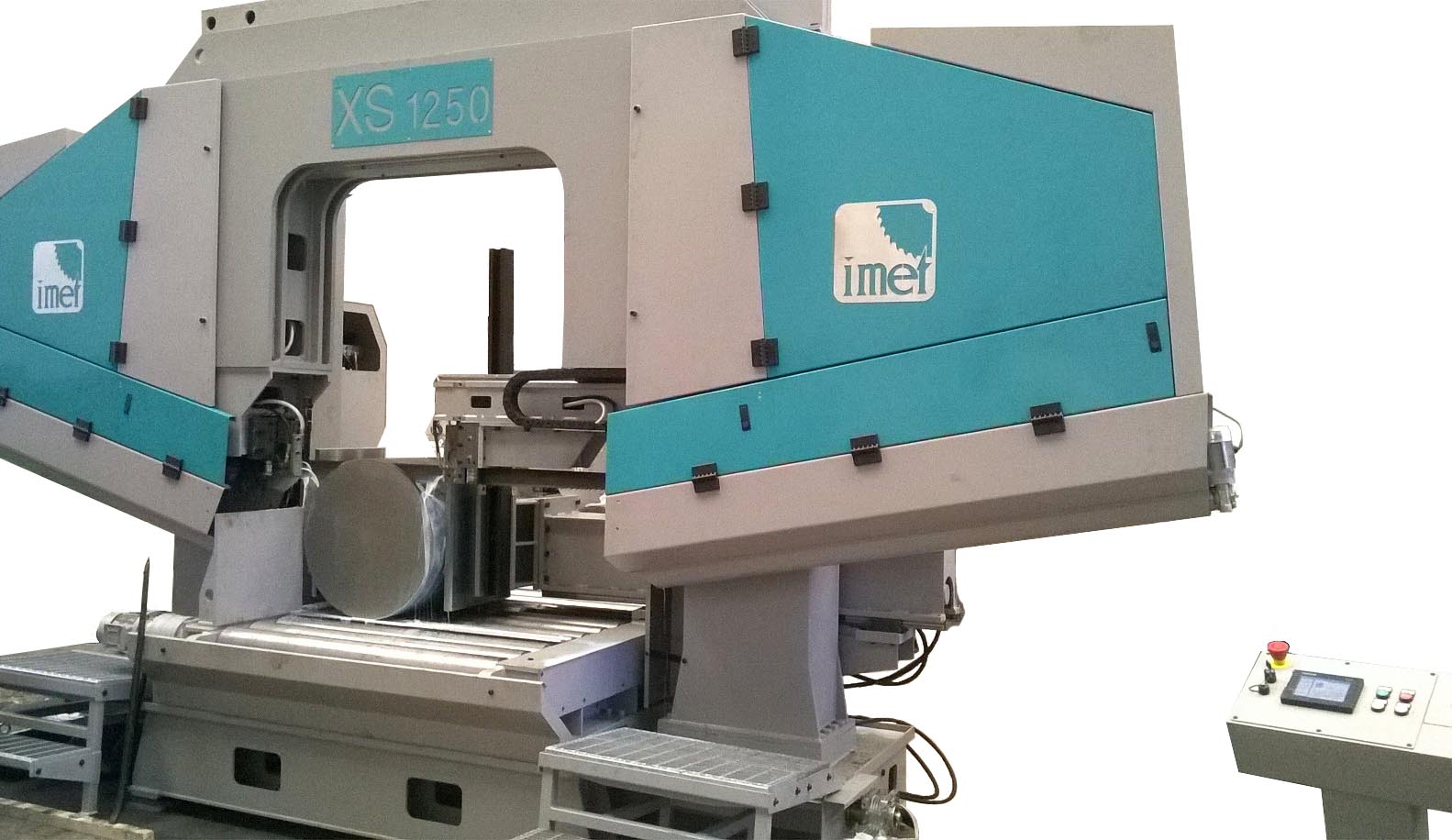

IMET XS 1250 semiautomatic hydraulic maxi line saw

The semiautomatic hydraulic maxi line saws embody the best sawing technology and the best performance in the cutting of special steel.
Thanks to this system the sawing machine can stop without problem if there are some considerable changes.
For cutting till 900 mm. round and square.

    XS 1250
    Area Angular Cut°90
    Cutting capacity at 90°: round / squaremm.1250/1250
    Blade dimensionsmm.12,380 x 80 x 1.6
    Inclinationf of the blade°0
    Blade Motor PowerKW13
    Blade speedmt/min.14 ÷ 60
    Motor Hydraulic UnitKW3
    Capacity Tank Hydraulic UnitLt80
    Capacity Coolant TankLt220
    Dimensions ( B x L x H )mm.5450 x 1680 x 4000
    Height of the Working-tablemm.760
    Type of functioningsemiautomatic
    Suitable for cutting:Steel / cast iron / high-strength steels / superalloys
