IMET BS 350 SHI Hydraulic semiautomatic bandsaw
Hydraulic semiautomatic bandsaw, mitre cutting from 0° to 60° left and from 0° to 45° right.

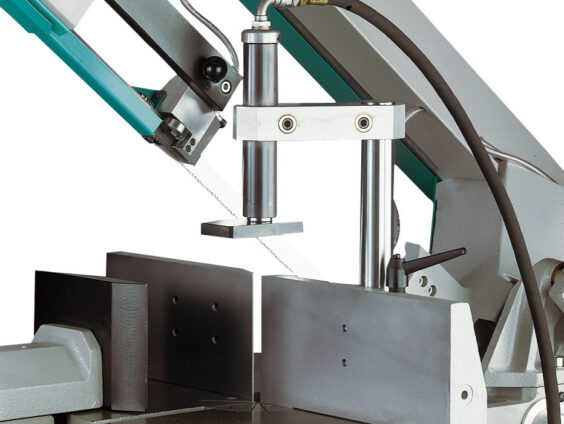

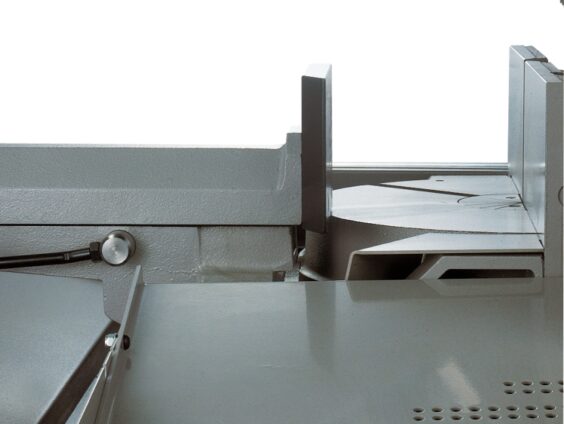

Hydraulic vice with adjustable guides, free to move alongside the worktable, with quick motion and clamping.
Easy stops at 0°, 45°, 60° left and 45° right. Adjustment of the blade tension from the front side of the sawframe, checked by an end-stroke. Blade guides with hard metal pads, additional bearing for blade alignment.
Steel sawframe with tubular section, pulleys 360 mm diameter.

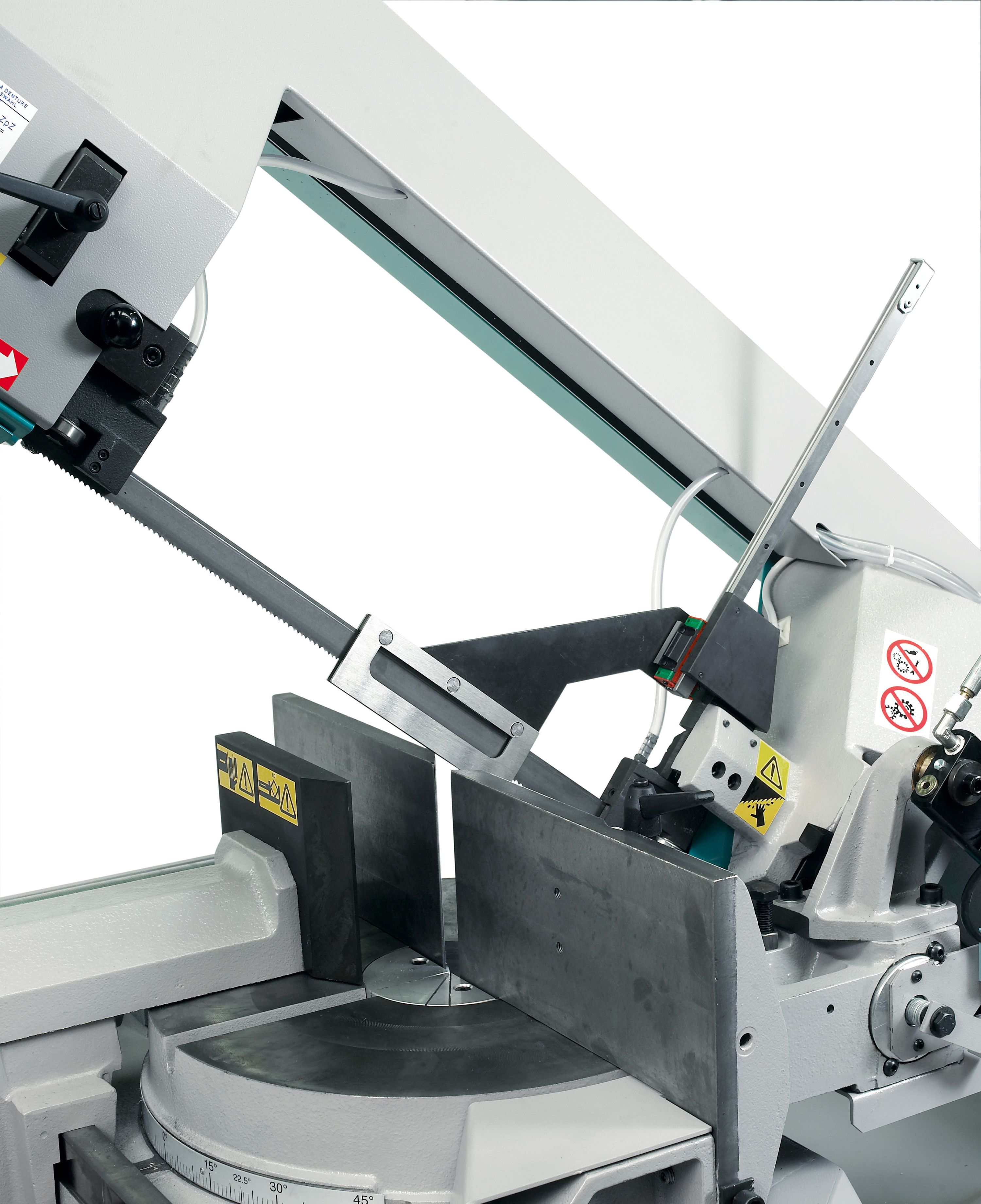

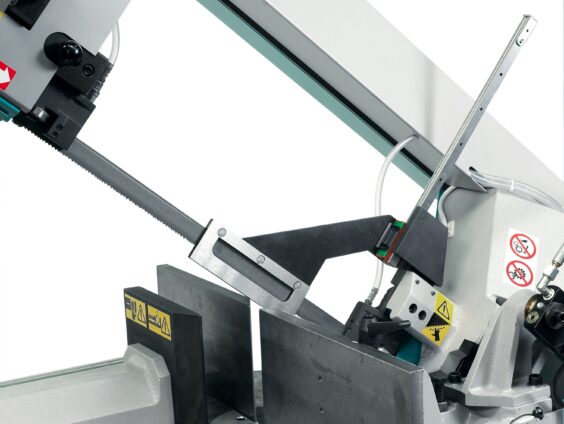

Mechanical device (position sensor) that allows the sawframe to lower quickly toward the material and detect automatically the start-cut point.
Cutting Capacity: rounds till 255 mm., square till 240 mm. and rectangular till 300×180 mm.
|IMET BS 350 SHI|
|Area angular cut||°||-45 / 90 / +30|
|Cutting capacity at 90°: round / square / rectangular||mm.||305 / 260 / 350 x 200|
|Blade dimensions||mm.||3370 x 27 x 0.9|
|Blade Motor Power||KW||1.5/2.2 or 2.2 ESC|
|Dimensions ( B x L x H )||mm.||1480 x 1700 x 1900|
|Height of the work-table||mm.||940|
|Type of functioning||Semiautomatic hydraulic|
|Suitable for cutting:||Steel / cast iron|
