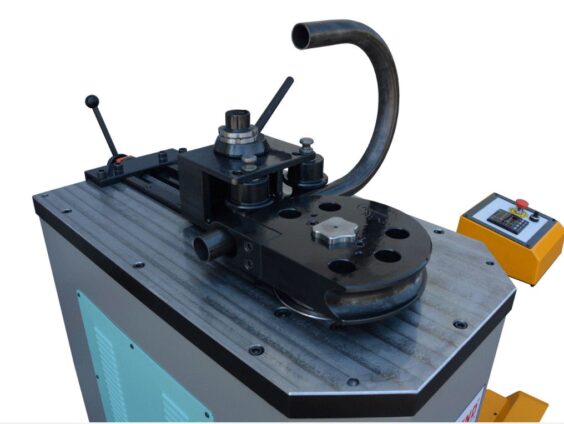

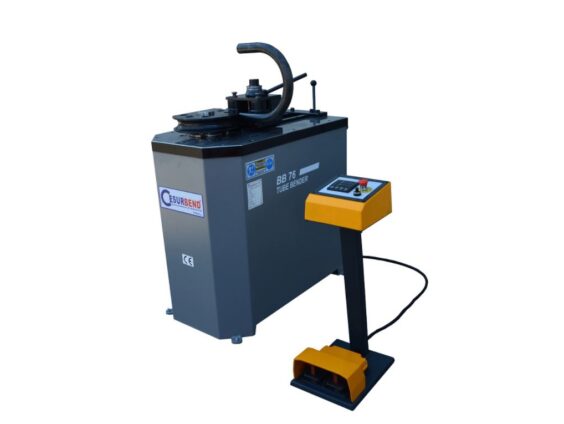

Cesurbend BB-76 Non Mandrel Pipe and Tube Bending Machine
Product Details:
CK 45 monoblock body
Gearbox driven gear system
Digital programmed unit for degree
Precision counter at back
Vertical working position
Speed setting
All shafts and the necessary parts are heat treated and grinded
Shafts and rolls are SAE 1050 quality steel
| Technical information | |
| Model | BB-76 |
| Max.Pipe Diameter | 76 |
| Max.Wall Thickness (mm) | 4 |
| Working Speed (RPM) | 1 – 3 |
| Engine Power (kW) | 4 |
| Machine Weight (kg) | 750 |
| Machine Length (mm) | 1000 |
| Machine Width (mm) | 600 |
| Machine Height (mm) | 1000 |
