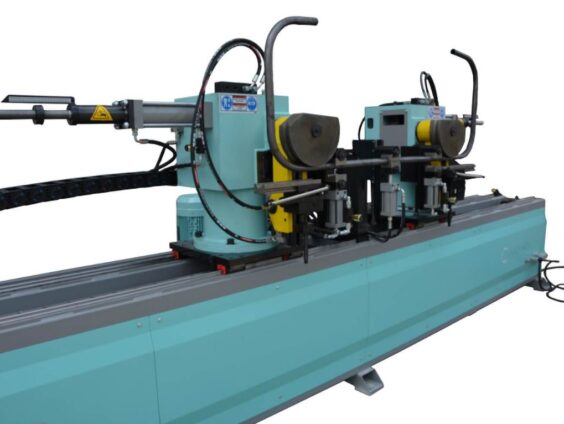

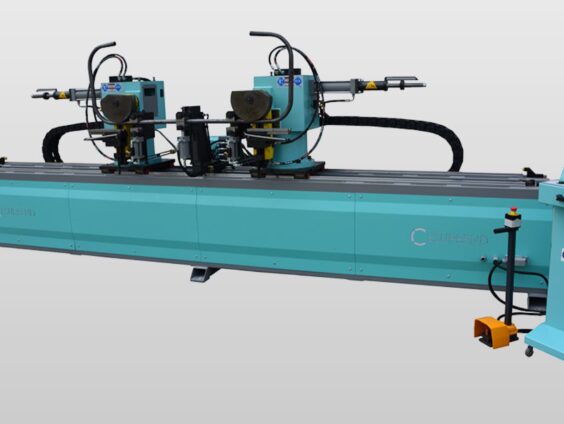

PB-38 DHNC Double Head Pipe and Tube Bending Machine

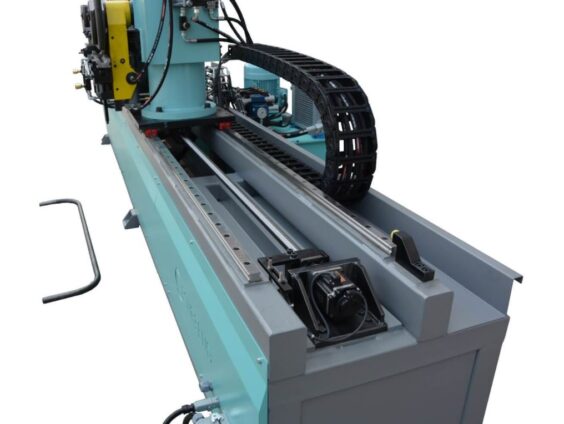

X axis control with servo motor
Ability to make more than one bend
CNC Control
7″ touch PC Panel.Turkish and English language option

    Technical specification
    ModelPB-38 DHNC
    Max. Bending Capacity (Ø)38 x 3
    Max. Bending Radius (mm)220
    Bending Degree (°)0 – 90
    Shaft Diameter (mm)40
    Tightening Opening Distance (mm)50
    Pressure On Distance (mm)50
    Min.-Max. Bending Distance (mm)250 – 5500
    Working Height (mm)1220
    Hydraulic Tank Capacity (lt)160
    Engine Power (kW)7.5
    Machine Weight (kg)2000
    Machine Width (mm)1700
    Machine Length (mm)5200
    Machine Height (mm)1700
