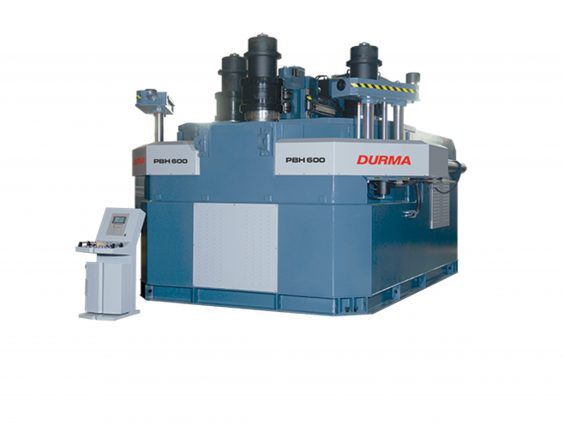

PBH SERIES PROFİLE BENDING MACHINE
Longlife of machine by strong frame and world class components. Short cycle times by high drive torque and speed. Minimised straight edge by hydraulic adjustments. Low energy and maintainence costs by friction free planetary swing guides. Powerful guide rolls.
PBH Series Hydraulic Bending are expressly designed for rolling profiles with high resistance to the bending. This is the reason why the structures are heavily dimensioned and are built with heavy thickness plates of certified quality steel. Equipped with cutting edge technology providing customer maximum satisfaction in pipe and tube bending. DURMA product line offers a wide range of solutions; in addition every roll bender or tooling can be custom-designed to satisfy specific pipe bends needs.
PBH Series Profile Bending Machines
“Fast, Accurate and Easy to Operate”
Robust machine frame is rugged steel construction, machined after the welding for rigidity.

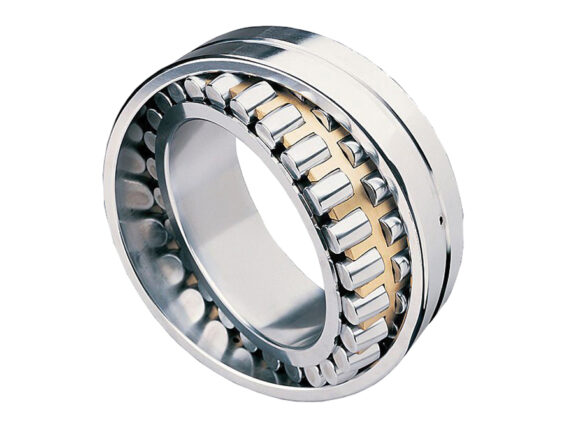

Precise bending by large shaft diameters and bearings also minimizes deflection.
Longlife of machine by strong frame and world class components. Short cycle times by high
drive torque and speed. Minimised straight edge by hydraulic adjustments
Low energy and maintainence costs by friction free planetary swing guides.
Powerful guide rolls.
Digital readout (X,Y axis)

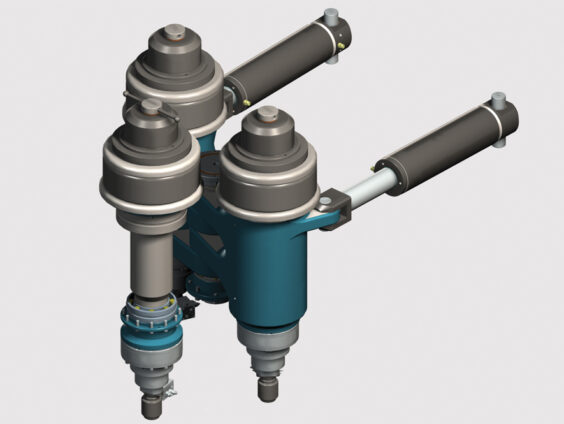

All rolls driven by planetary gear box and hydramotor (PBH 80 to 125)
All rolls 3 different planetary gear box and hydramotor driven (PBH 180 to 600)
Special support for angle profile
3 axis (Z, U, C) side supports Z hydraulic control (PBH 80 to 100)
3 axis (Z, U, C) side supports full hydraulic control (PBH 125 to 600)
Movable command panel seperate from the machine
Horizontal working feature
Vertical working feature (PBH 60 to 125)
Stress relieved stell construction body
Electrical and hydraulic protection against overloads
1 set standard hardened and ground rolls made by special steel
Digital readout for Z Axis
Tai bar for upper roll
NC control system
Adjustable turning speed
Oil cooler
Oil heater
Special rolls (Pipe, profile, angle iron)
Special aparatus to prevent deformation on U-I-H bending
Spiral bending apparatus
